Informatika - 2023./24. jesen - 20.
20. Odredite tablicu istinitosti za složeni logički izraz $R=\bar{X}+\bar{Y}+\overline{X \cdot Z+Y}$.

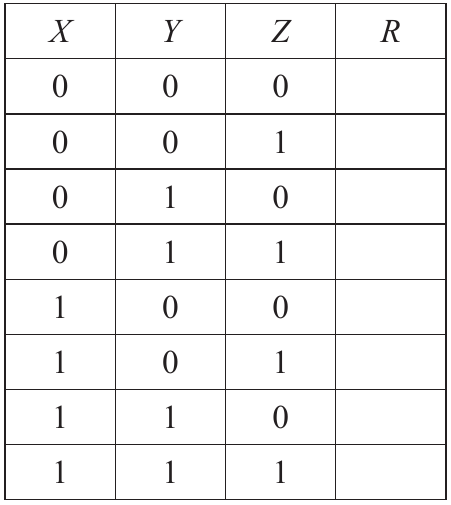

$X$ | $Y$ | $Z$ | $R$ |
|---|---|---|---|
0 | 0 | 0 | \qquad |
0 | 0 | 1 | \qquad |
0 | 1 | 0 | \qquad |
0 | 1 | 1 | \qquad |
1 | 0 | 0 | \qquad |
1 | 0 | 1 | \qquad |
1 | 1 | 0 | \qquad |
1 | 1 | 1 | \qquad |
Red 1:
Red 2:
Red 3:
Red 4:
Red 5:
Red 6:
Red 7:
Red 8:
